Phoenix Lite 3 — Professional Overview
The Phoenix Lite 3 is a compact diagnostic scanner designed for automotive professionals, enthusiasts, and small repair shops. Tailored to meet the diverse needs of the automotive industry, Phoenix Lite 3 offers unparall
Features and specifications

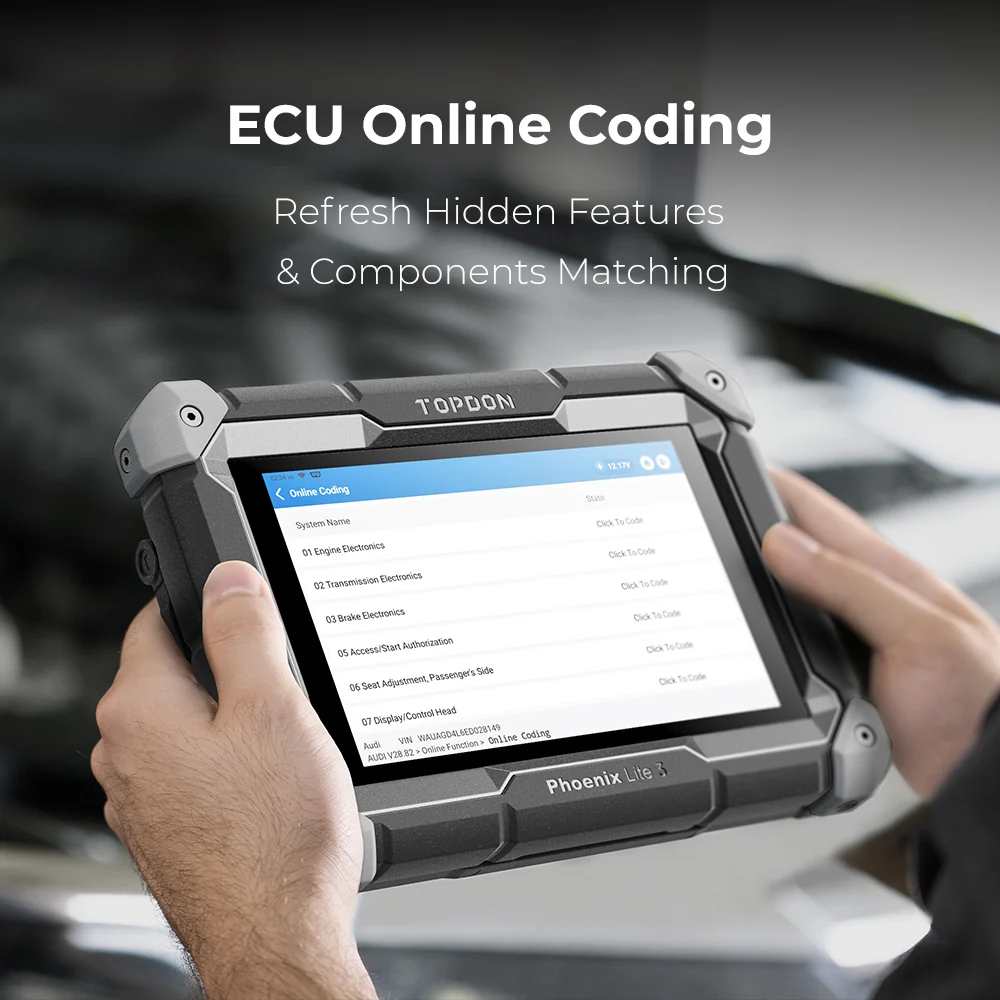

The Phoenix Lite 3 is a compact diagnostic scanner designed for automotive professionals, enthusiasts, and small repair shops. Tailored to meet the diverse needs of the automotive industry, Phoenix Lite 3 offers unparalleled functionality and affordability. With features like CAN-FD protocol, online coding, and topology mapping functions, it stands out as the top choice for a wide range of users.
FEATURES

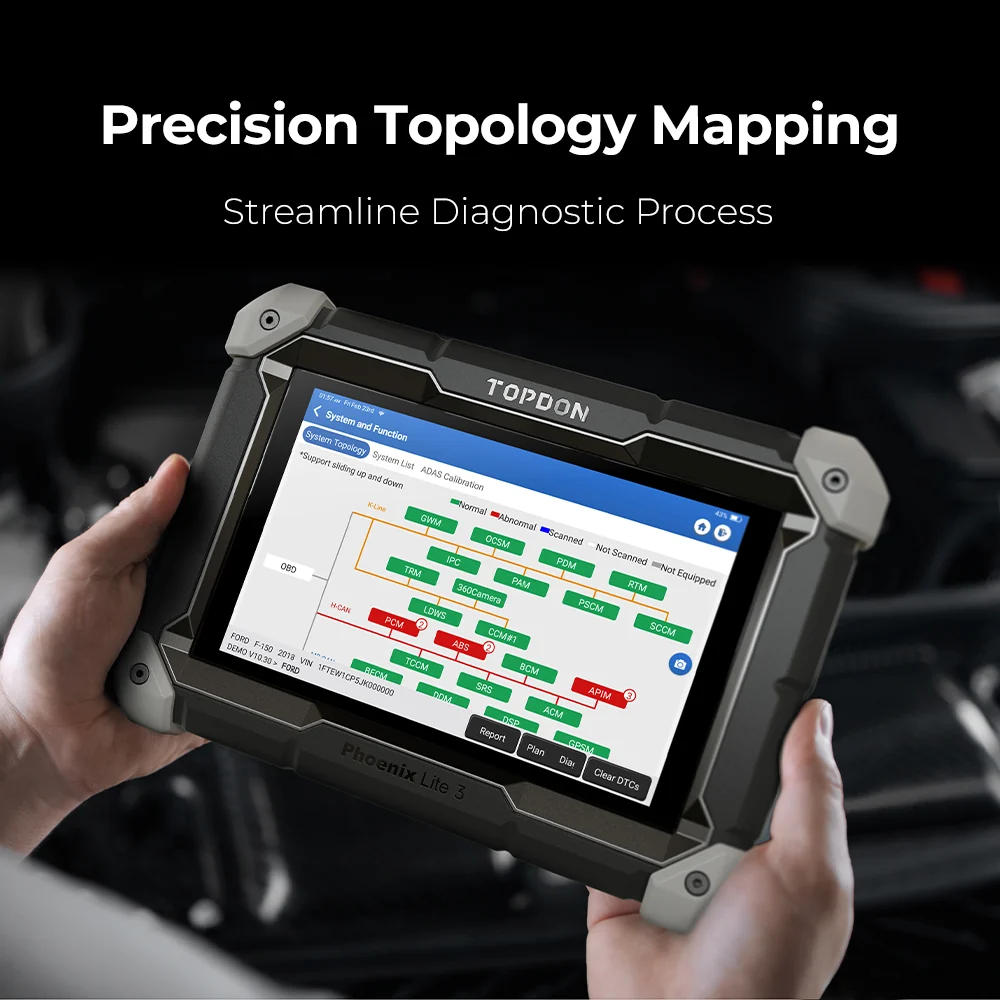

Precision Topology Mapping
Enhancing communication efficiency and troubleshooting accuracy, the Phoenix Lite 3 offers a comprehensive depiction of the vehicle's systems and status. With its clear and detailed layout, it facilitates the understanding of the communication structure between modules, enabling swift problem localization and isolation.

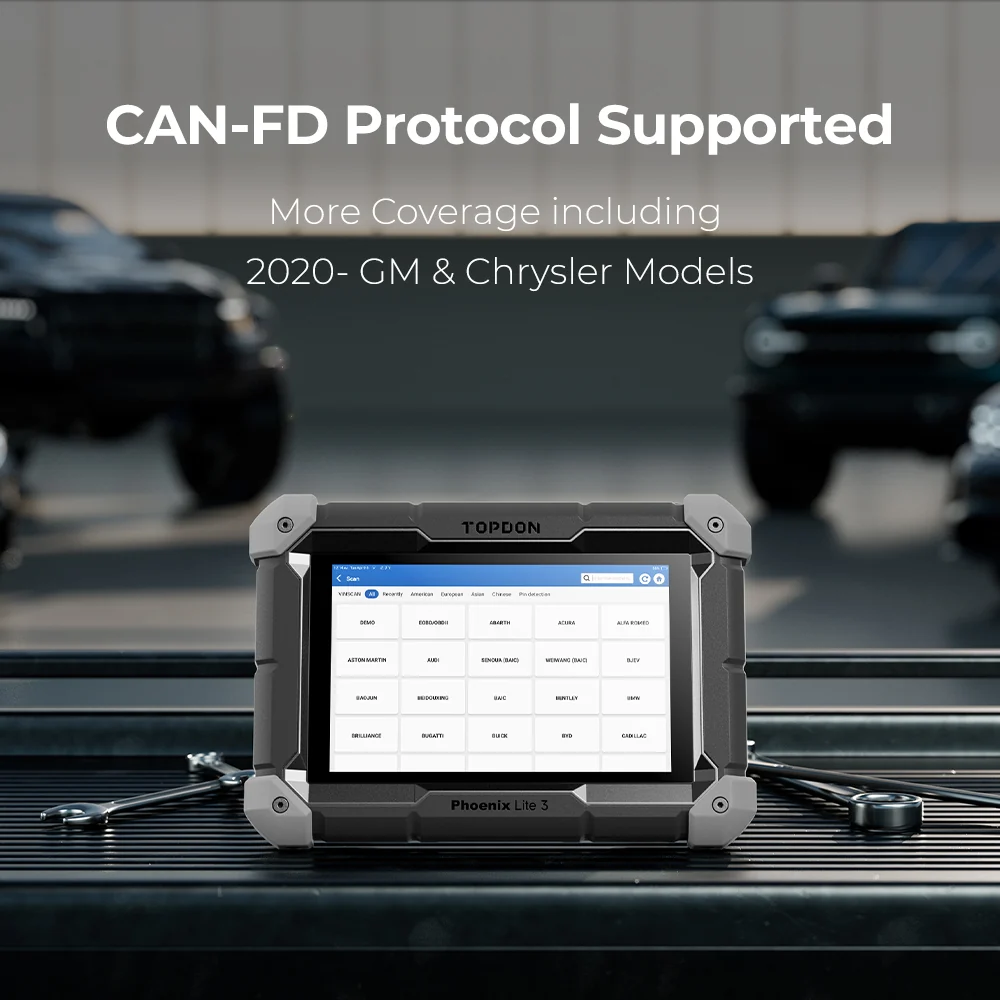

CAN-FD Protocol Supported
Supporting the cutting-edge CAN-FD protocol, this automobile diagnostic tool is compatible with more modern vehicles (2020-now GM & Chrysler Models).

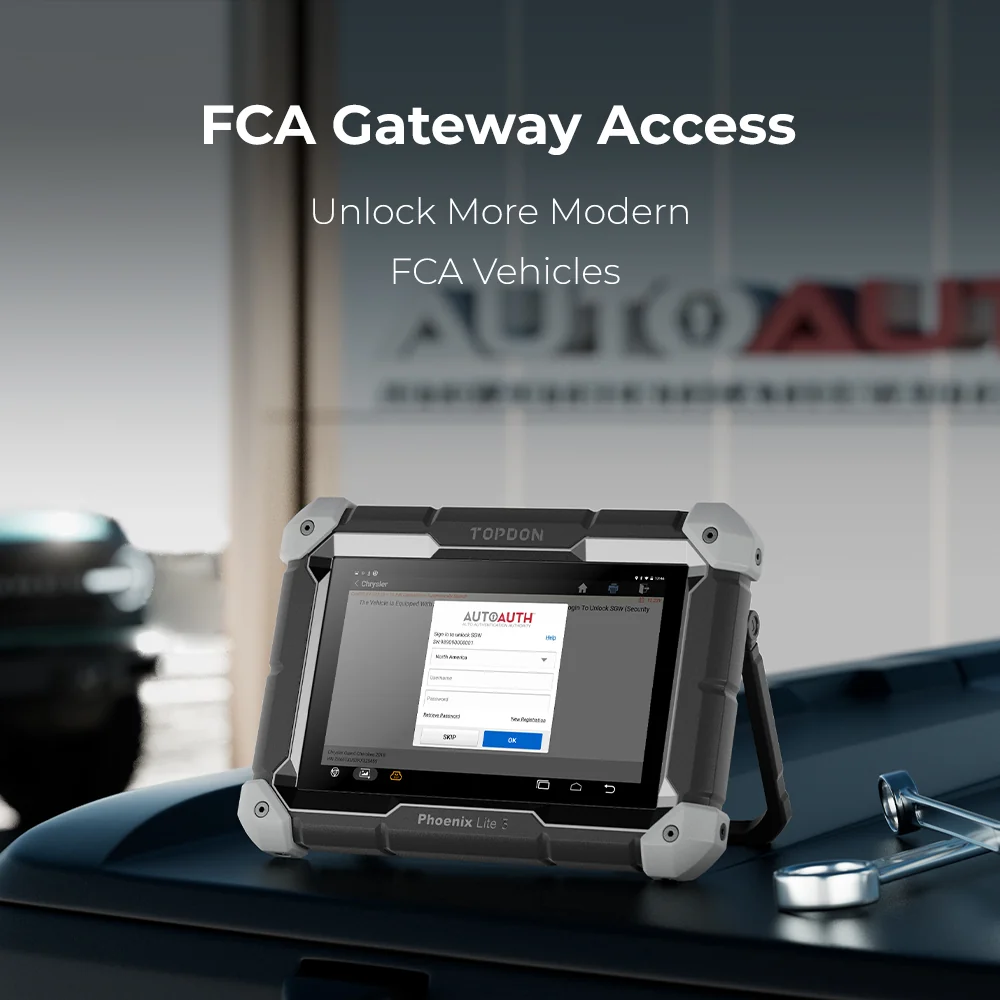

FCA Gateway Access
Equipped with support for FCA Secure Gateway, facilitating seamless full diagnostics on more contemporary cars such as Fiat without the need for separate adapters.
Cover 168 + Vehicle Makes
Phoenix Lite 3 offers comprehensive full-system diagnostics for 168 makes and models, providing an in-depth understanding of all vehicle systems. From crucial components like ABS, SRS, Engine, and transmission to essential modules such as ECM, PCM, EPS, PDM, TPM, BCM, and more.
35 Maintenance Functions
A comprehensive coverage of 35 maintenance services to cover essential tasks such as Oil resets, EBP resets, Suspension resets, and more. Additionally, it offers support for specialized functions within specific systems, including Add/Replace Key Fobs, Battery Sensor Module learning, and Tire Pressure Sensors Learning.

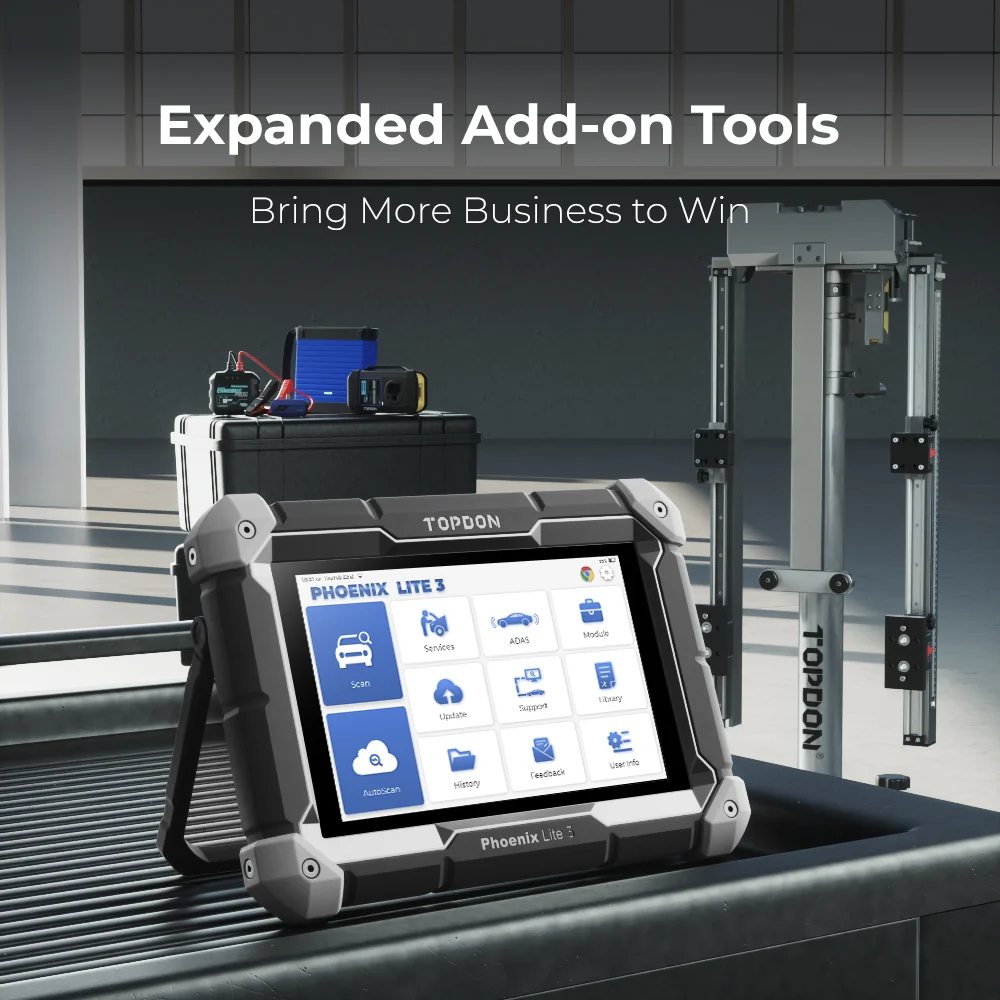

Expanded Add-on Tools
Integrates with add-on modules for extended functionality, offering wide compatibility with TOPDON’s professional products. These include BT Mobile ProS, Oscilloscope, TC001 Thermal Imaging, Phoenix ADAS, T-Ninjia Box, and more.
Bi-Directional Controls

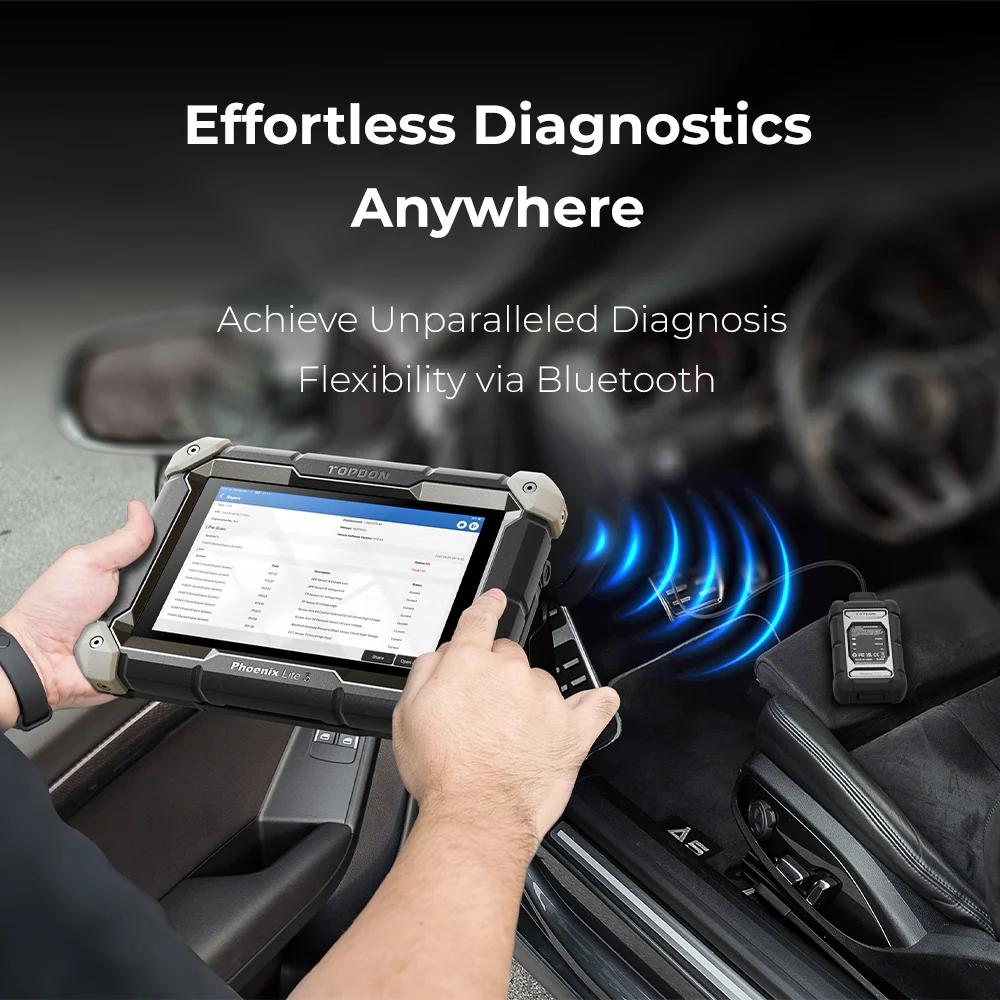

Effortless Diagnostics Anywhere

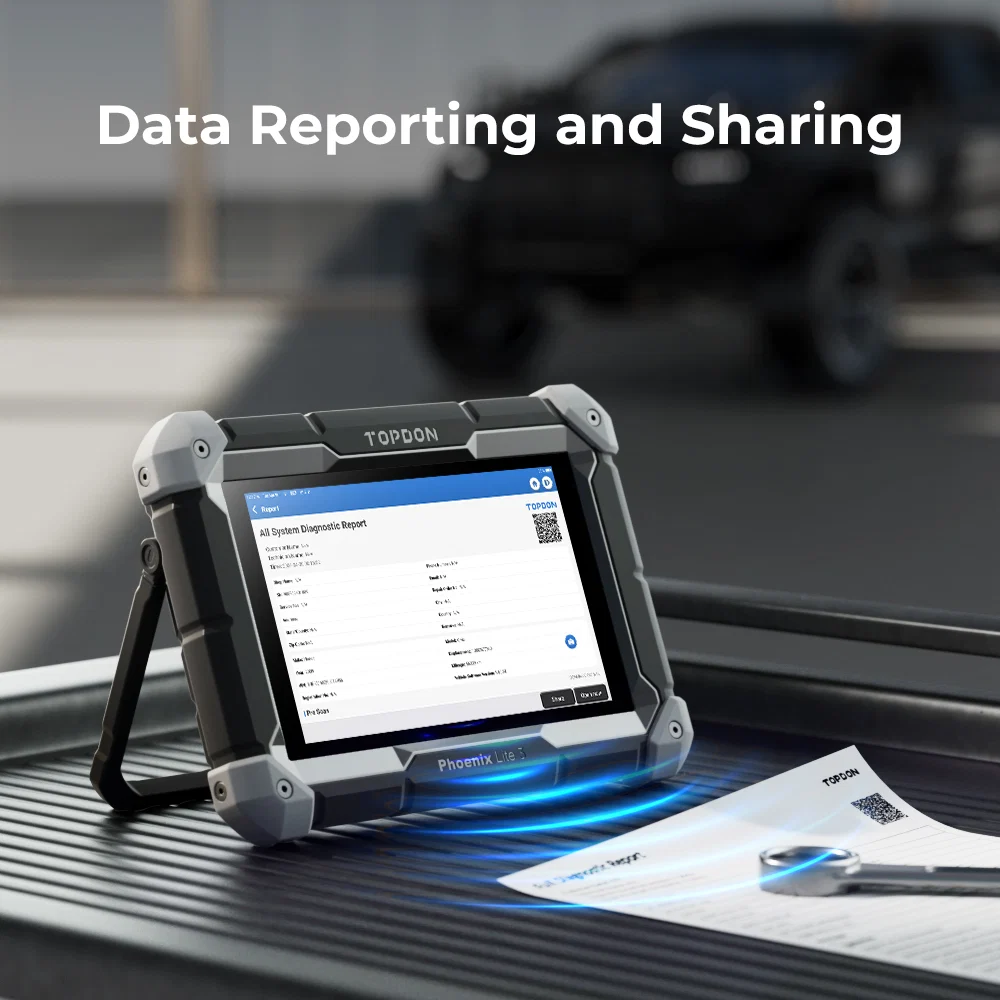

Data Reporting and Sharing
PHOENIX LITE 3 SPECS
- Display: LCD 8-Inches, 1280*800 Pixels
- CPU: 4-Core Processor, 2.0 GHz
- Operating System: Android 10.0
- RAM: 2G
- ROM: 64G
- Battery：12600 mAh / 3.8V (tested to have up to 24h of battery life with the screen on)
- Operating Voltage: 9~18V
- Storage Temperature: -20℃~60℃ (-4℉~140℉)
- Working Temperature: 0℃~50℃ (32℉~122℉)
- Product Dimensions: 258*183*50.5 mm (10.2*7.2*2 inches)
- Net Weight: 1184.5 g (2.61 lbs.)
- Multilingual Support: 24 Languages
English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish, Norwegian
MDCI SPECS
- Working Temperature: 14℉~122℉ (-10℃~50℃)
- Operating Voltage: 9~18V
- Working Current: ≦ 150 mAh
- Dimension: 5.00*3.22*1.42 inch (127*82*36 mm)
- Protocol Supported: CAN-FD
WHAT'S IN THE BOX
- Phoenix Lite 3
- MDCI Dongle
- Battery Clamps/Cable Set
- Cigarette Lighter Cable
- Fuse (φ5*20mm)*4
- Fuse (φ6*30mm)*2
- Type-C to USB Cable
- Power Adapter
- OBDI Adapter BOX Transfer Line
- OBDII Extension Cable
- BZ-38 (BENZ)
- TA-22 (TOYOTA)
- TA-17 (TOYOTA)
- G/V-12 (GM/VAZ)
- B-20 (BMW)
- CR-6 (CHRYSLER)
- HA-3 (HONDA)
- NN-14+16 (NISSAN)
- M/H-12+16 (MITSUBISHI/HYUNDAI)
- FT-3 (FIAT)
- User Manual
- Package List
- Password Letter
WARRANTY
- Warranty Continues with Customer's Subscription
- 2 Years of Free Software Upgrades
RETURN & REFUND POLICY
30-Day Money-Back Guarantee
