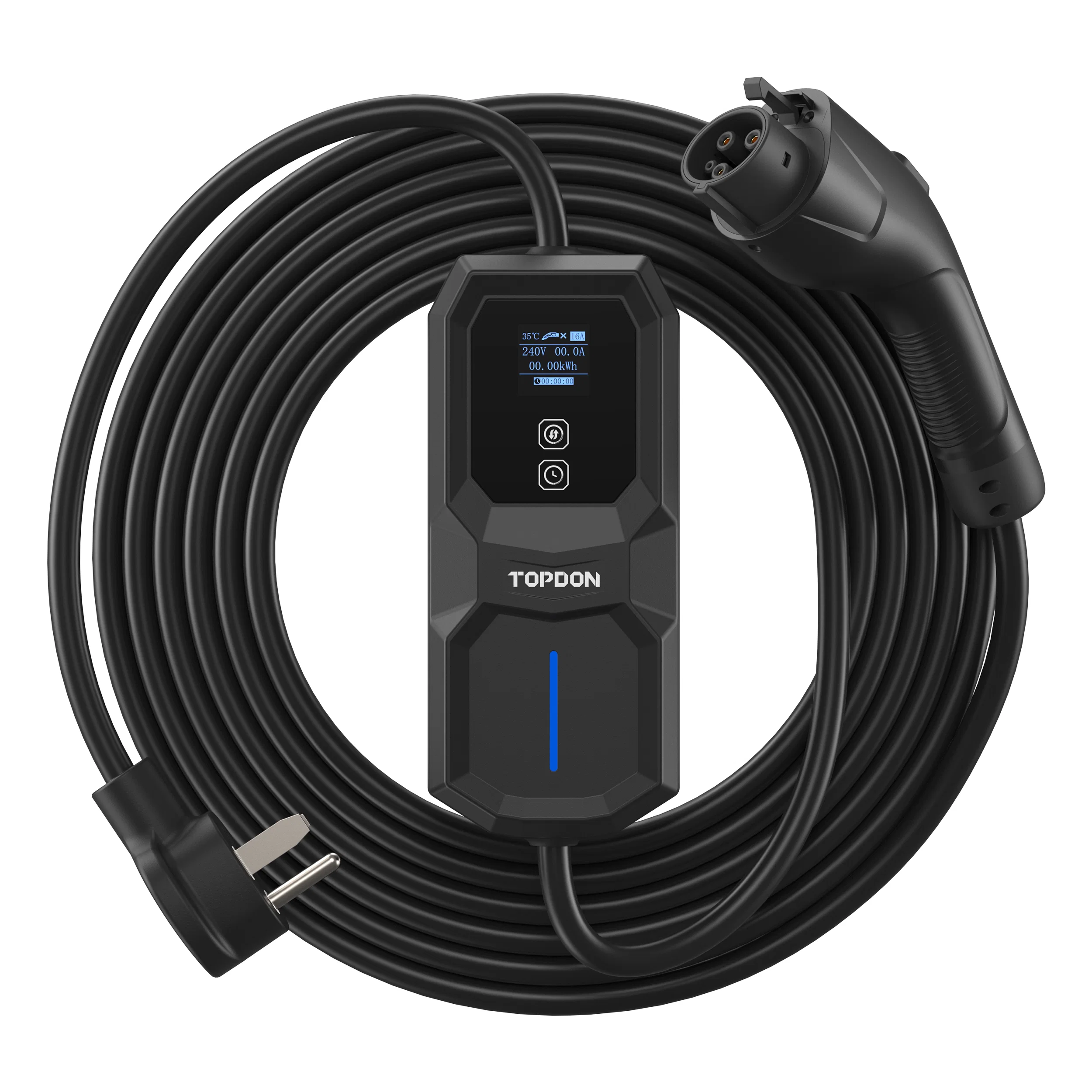

PulseQ AC Portable EV Charger — Professional Overview
The PulseQ AC Portable is a value-packed solution for charging your electric vehicle on the go! Enjoy the convenience of two charging modes – plug-and-charge and scheduled charging – offering flexibility to suit your nee
Features and specifications
The PulseQ AC Portable is a value-packed solution for charging your electric vehicle on the go! Enjoy the convenience of two charging modes – plug-and-charge and scheduled charging – offering flexibility to suit your needs.
Designed with advanced voltage, current, and temperature detection modules, simply connect the PulseQ AC Portable to your electric vehicle and witness its seamless operation. The LCD screen provides real-time information, while the intuitive current selection and scheduled charging buttons enable you to optimize your charging experience based on your home's power capacity and electricity pricing periods. Embrace the freedom of mobile charging with the PulseQ AC Portable.
FEATURES
Unmatched Versatility
- Charge your electric vehicle anywhere, anytime with the PulseQ AC Portable. Its comprehensive range of connectors and plugs caters to various regions, including the US and Europe, making it your ultimate charging companion on the road.
Lightning-Fast Charging
- Experience seamless power-up moments with advanced voltage, current, and temperature detection modules. Connect the PulseQ AC Portable to your electric vehicle, and watch it come to life, delivering lightning-fast charging for all your adventures.

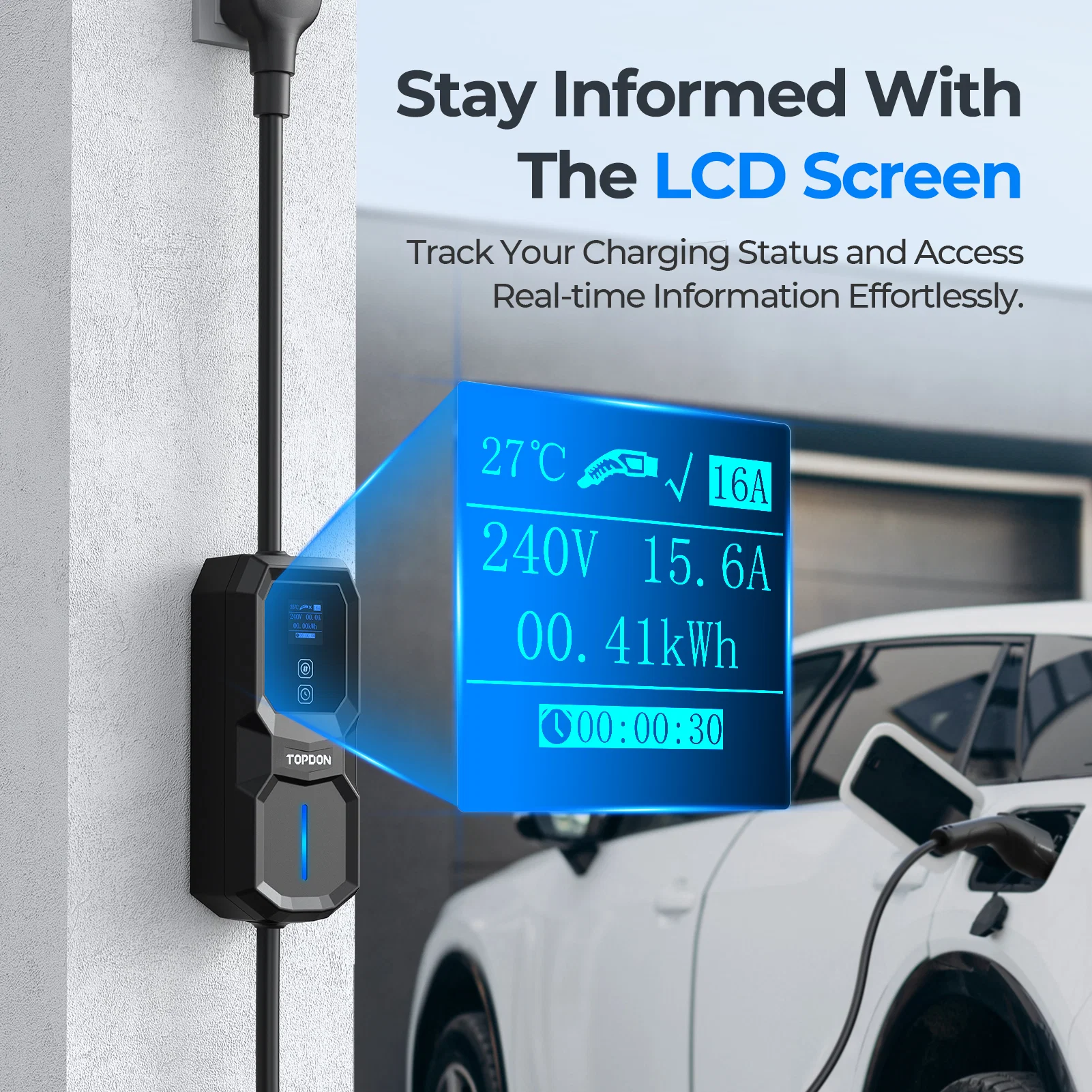

Real-Time Insights
- Stay informed at every moment with the user-friendly LCD display. Track your charging status and access real-time information effortlessly, keeping you in the driver's seat of your electric vehicle's power.
Plug & Charge or Use The Scheduling Feature
- Enjoy the flexibility of two charging modes. Whether you need an instant power-up with the “Plug & Power” mode or prefer to schedule charging with the “Smart Schedule” feature, the PulseQ AC Portable adapts to your lifestyle.
Customizable Charging Current
- Tailor your charging to exactly what you need. The PulseQ AC Portable lets you set the charging current according to your preferences and power needs, ensuring optimal charging for your electric vehicle.
Built to Last
- Engineered for durability, TOPDON products boast impressive IP and IK ratings, such as the NEMA Type 4 for the US version and IP65 for the European version. With the PulseQ AC Portable, you can charge confidently, knowing it's built to withstand the test of time.

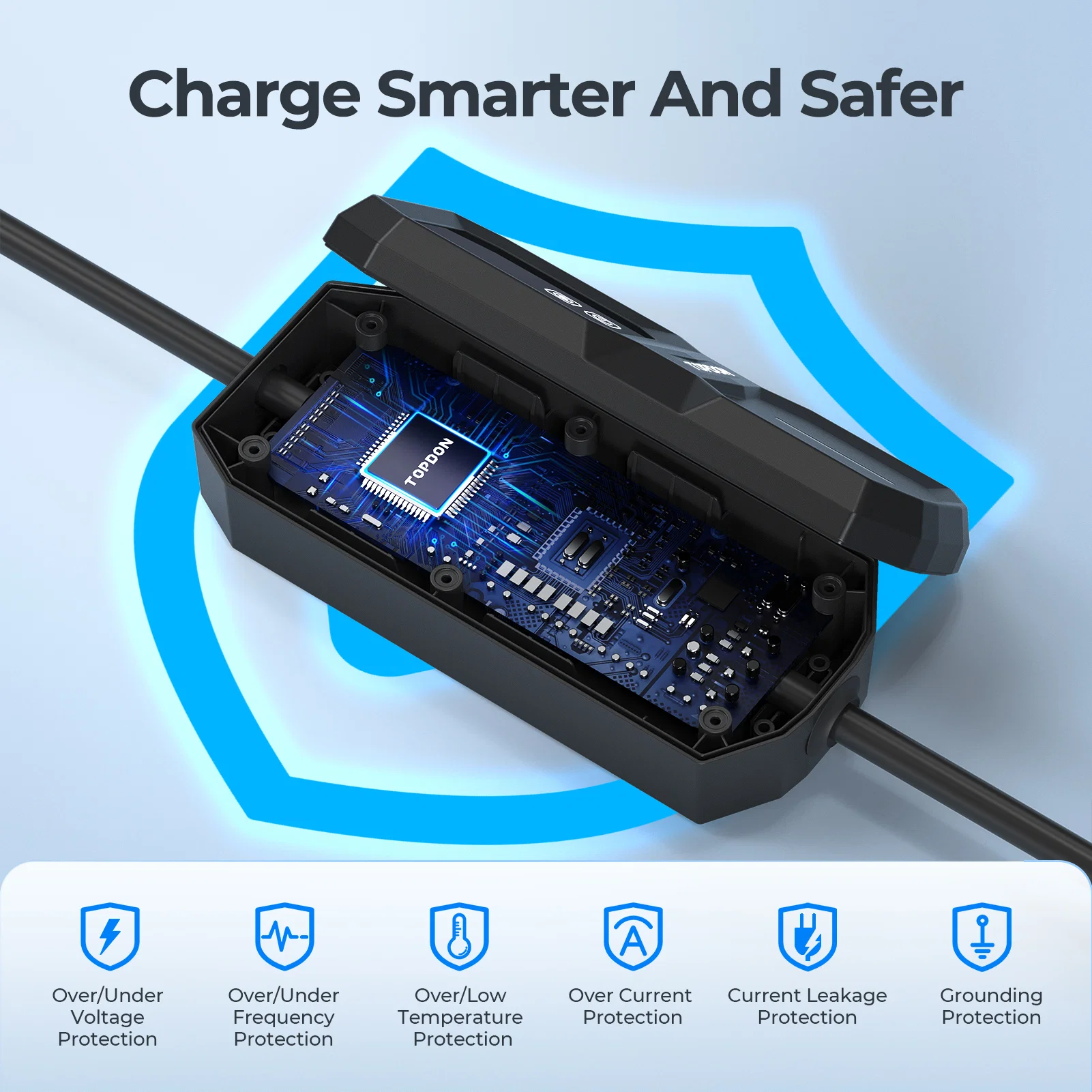

Safety First
- Safety is our priority.
- Our products are rigorously tested and certified to meet the safety standards of various regions, including ETL and FCC guidelines for the US version and TUV and CE for the European version. The PulseQ AC Portable is equipped with a range of protective features, from over/under voltage and frequency protection to overcurrent and temperature protection, ensuring a secure and worry-free charging experience. It even comes with current leakage protection and grounding protection for added peace of mind.
Unleash Your Wanderlust
- From urban streets to rugged terrains, the PulseQ AC Portable is your ticket to endless exploration. Embrace the freedom of mobile charging and travel as far as your heart desires.
SPECS
Model: 16A
- Charging Mode: Model 2 Case C
- Connector: Type 1 (J1772)

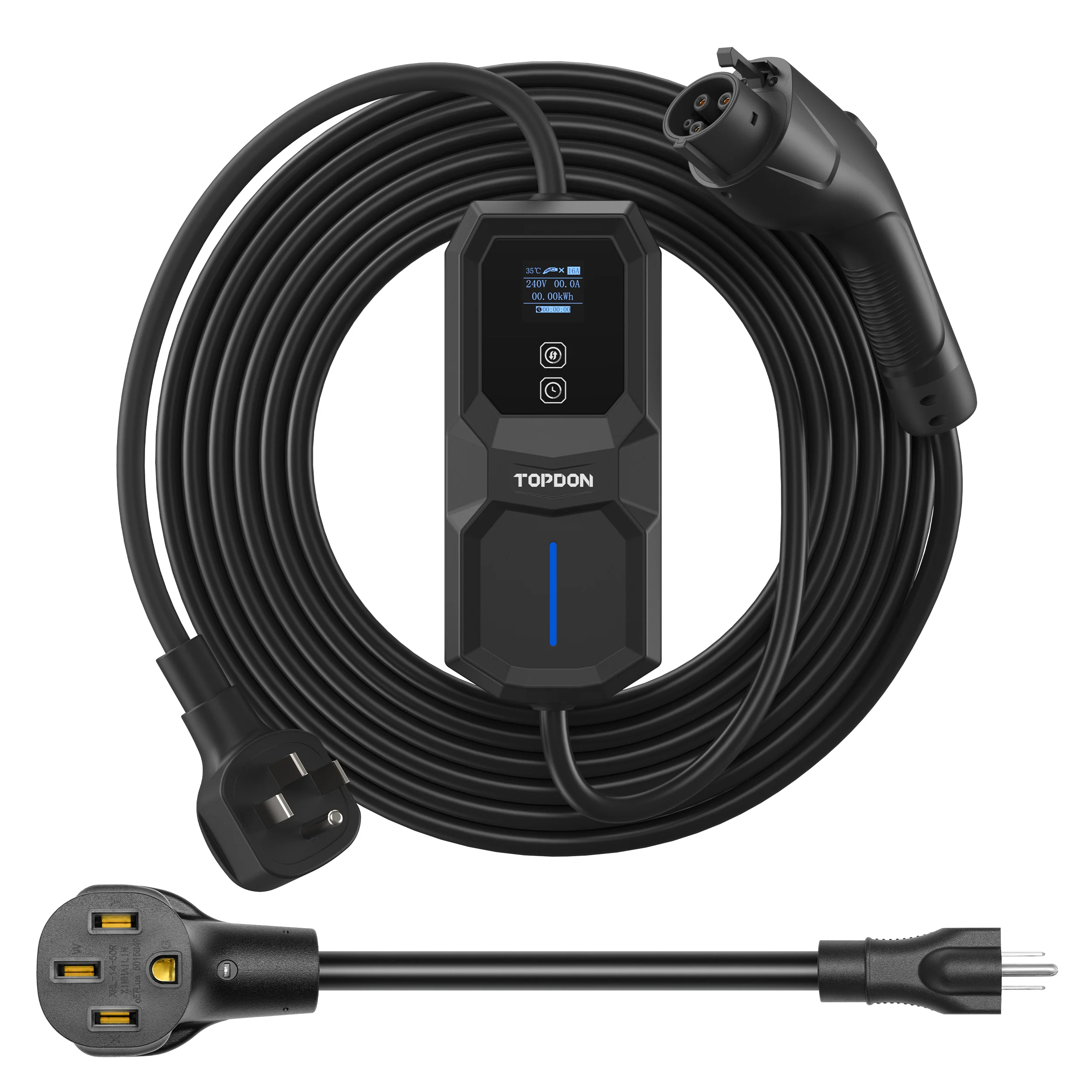

- Plug Compatibility: NEMA5-15P, NEMA6-20P & NEMA6-20R to 5-15P Adaptor (optional)
- Input/Output Power Rating And Current: Single Phase: up to 3.8kW/16A
- Current Setting: 8/10/13/16A
- Input/Output Voltage: 120/240V Single Phase
- Built-In Leakage Protector: CCID20
- Protection: Over/Under voltage protection, Over/Under frequency protection, Over/Low temperature protection, Over current protection, Current leakage protection, Grounding protection
- IP and IK Rating: NEMA TYPE4
- Operating Temperature: -22°F to 122°F
- Storage Temperature: -40°F to 176°F
- Power Frequency: 50/60Hz
- Operating Altitude: <6561.67ft
- Status Indication: LED and LCD
- Cable Length: Total 24.6ft(Input 36.6 Inchs, Controlbox 9.84 Inchs, Output 251.97 Inchs)
- Product Dimensions (H×W×D): 9.45*3.94*2.56 inches/240*100*65mm (main box)
- Weight: Net 8.82 lbs, Gross 11 lbs
- Package Dimensions: 11.81* 11.81*4.72 inches/300* 300*120mm
- Safety Standards: UL2594/CSA C22.2#280
- Certification: ETL, FCC
Model: 32A
- Charging Mode: Model 2 Case C
- Connector: Type 1 (J1772)
- Plug Compatibility: NEMA14-50P & NEMA 14-50R to 5-15P Adaptor, NEMA6-50P
- Input/Output Power Rating And Current: Single Phase: up to 7.7kW/32A
- Current Setting: 10/16/24/32A
- Input/Output Voltage: 120/240V Single Phase
- Built-In Leakage Protector: CCID20
- Protection: Over/Under voltage protection, Over/Under frequency protection, Over/Low temperature protection, Over current protection, Current leakage protection, Grounding protection
- IP and IK Rating: NEMA TYPE4
- Operating Temperature: -22°F to 122°F
- Storage Temperature: -40°F to 176°F
- Power Frequency: 50/60Hz
- Operating Altitude: <6561.67ft
- Status Indication: LED and LCD
- Cable Length: Total 24.6ft (Input 36.6 Inchs, Controlbox 9.84 Inchs, Output 251.97 Inchs)
- Product Dimensions (H×W×D): 9.45*3.94*2.56 inches/240*100*65mm (main box)
- Weight: Net 8.82 lbs, Gross 11 lbs
- Package Dimensions: 11.81* 11.81*4.72 inches
- Safety Standards: UL2594/CSA C22.2#280
- Certification: ETL, FCC
PACKING LIST
- AC EV Charger
- User Manual
- Carrying Bag
- Package Box
