Tornado90000 — Professional Overview
The Tornado90000 is TOPDON's newest cutting-edge smart charger, made for professional and commercial users. This device is suitable for all types of 12V and 24V lead-acid and lithium batteries, with a wide battery capaci
Features and specifications
The Tornado90000 is TOPDON's newest cutting-edge smart charger, made for professional and commercial users. This device is suitable for all types of 12V and 24V lead-acid and lithium batteries, with a wide battery capacity range from 5 to 90 amps.
The Tornado90000 features a current/voltage edit function and supplies users with the needed protection for batteries through its 9-step smart charging method and 6 charging modes. SUPPLY Mode provides a stable DC output and can be used as a programming voltage stabilizer.
FEATURES
6 CHARGING MODES, ADJUSTABLE CURRENT AND VOLTAGE

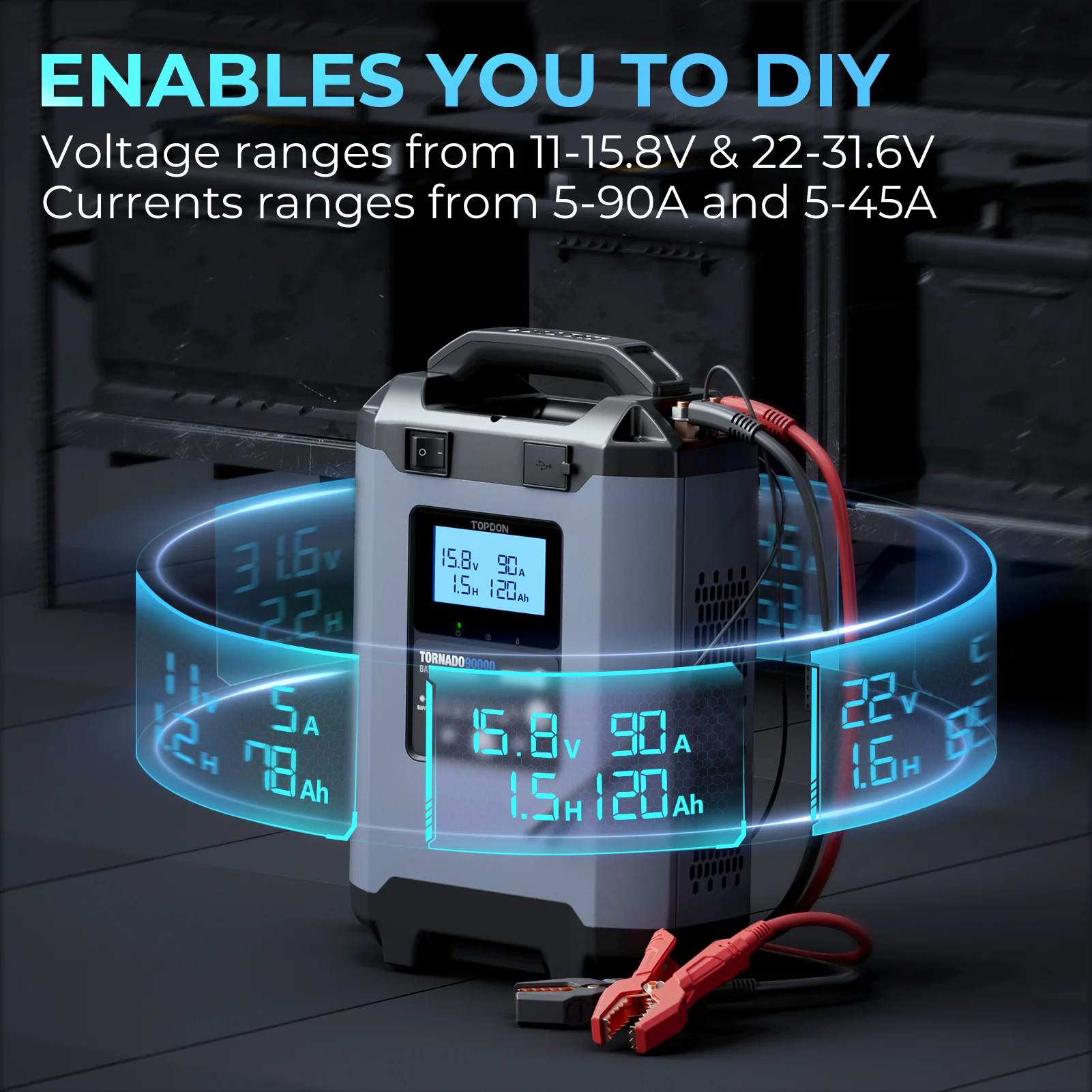

- The Tornado90000 offers 6 programmable charging modes to ensure the right current and voltage output at all times. This device also features an electrical current edit, and voltage edit function. The voltage adjustment ranges from 11-15.8V, and 22-31.6V. Corresponding currents are 5-90A and 5-45A.
LARGE POWER BANK
- The Tornado90000 can act as a stable power supply for various automotive appliances such as tire inflators, car fridges, and more.

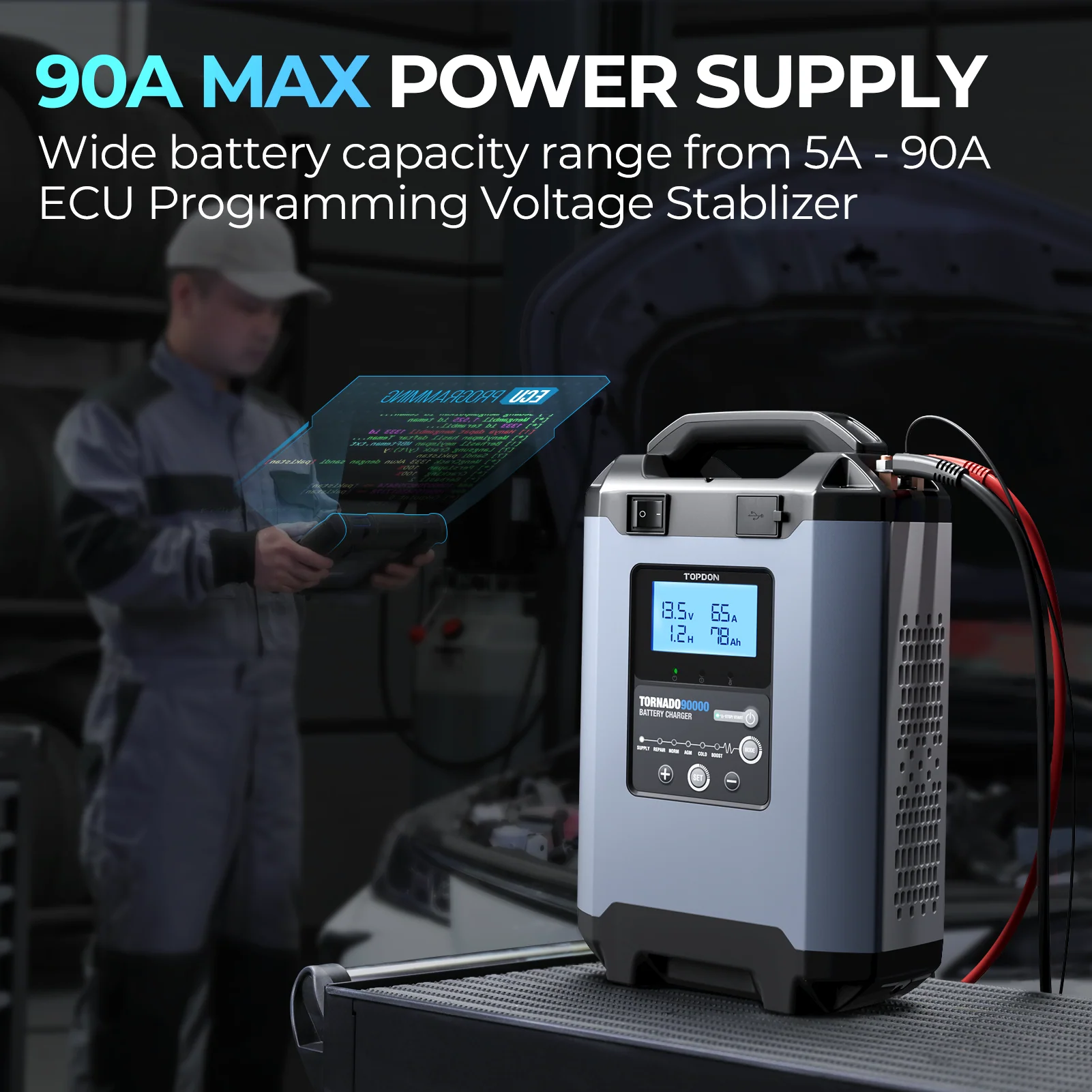

ECU PROGRAMMING VOLTAGE STABILIZER
- ECU programming voltage stabilizer can match multiple brands and types of automotive systems.
UNMATCHED COMPATIBILITY

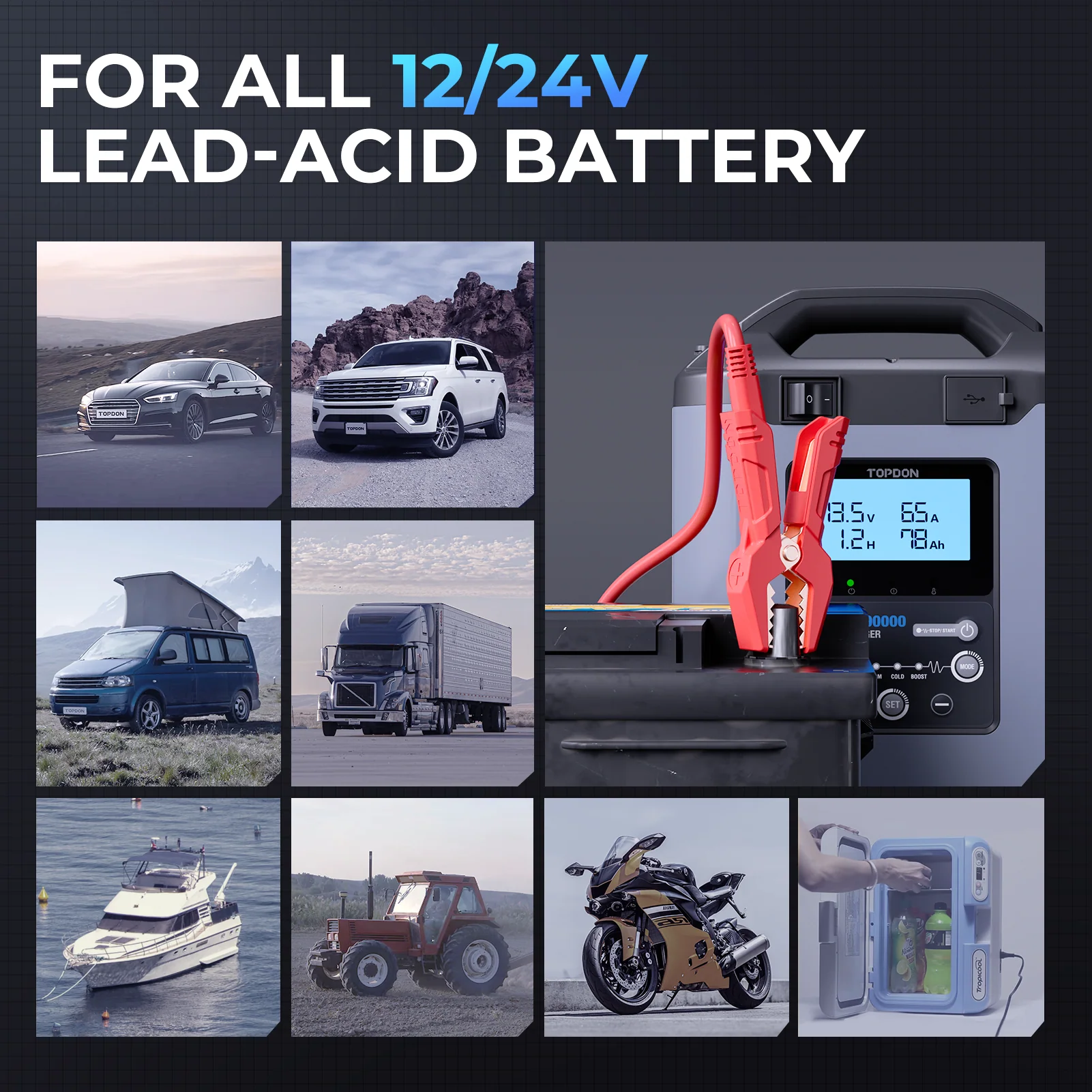

- Charge a wide variety of 12V and 24V batteries, such as AGM, WET, GEL, MF，CAL, and EFB batteries.The Tornado90000 is suitable for batteries between 5 and 90 amps.

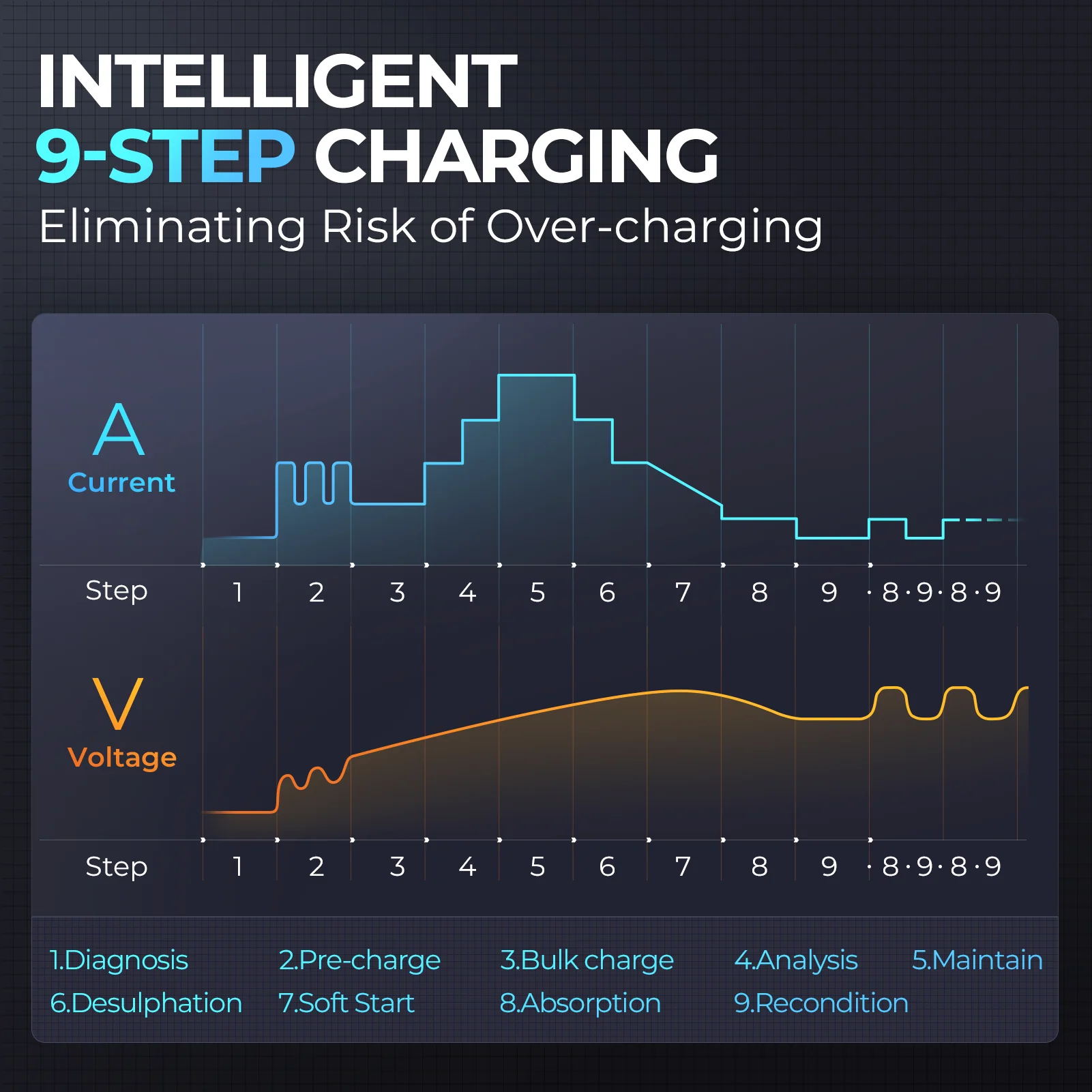

9-STEP SMART CHARGING
- Its "9-step smart charging" provides strong protection to the battery and the automatic charging and disconnection system eliminates any risk of overcharging.
YOUR BATTERY'S BODYGUARD
- With the Tornado90000 you are protected against reverse polarities, reverse charges, short circuits, overheating, and over-voltages.

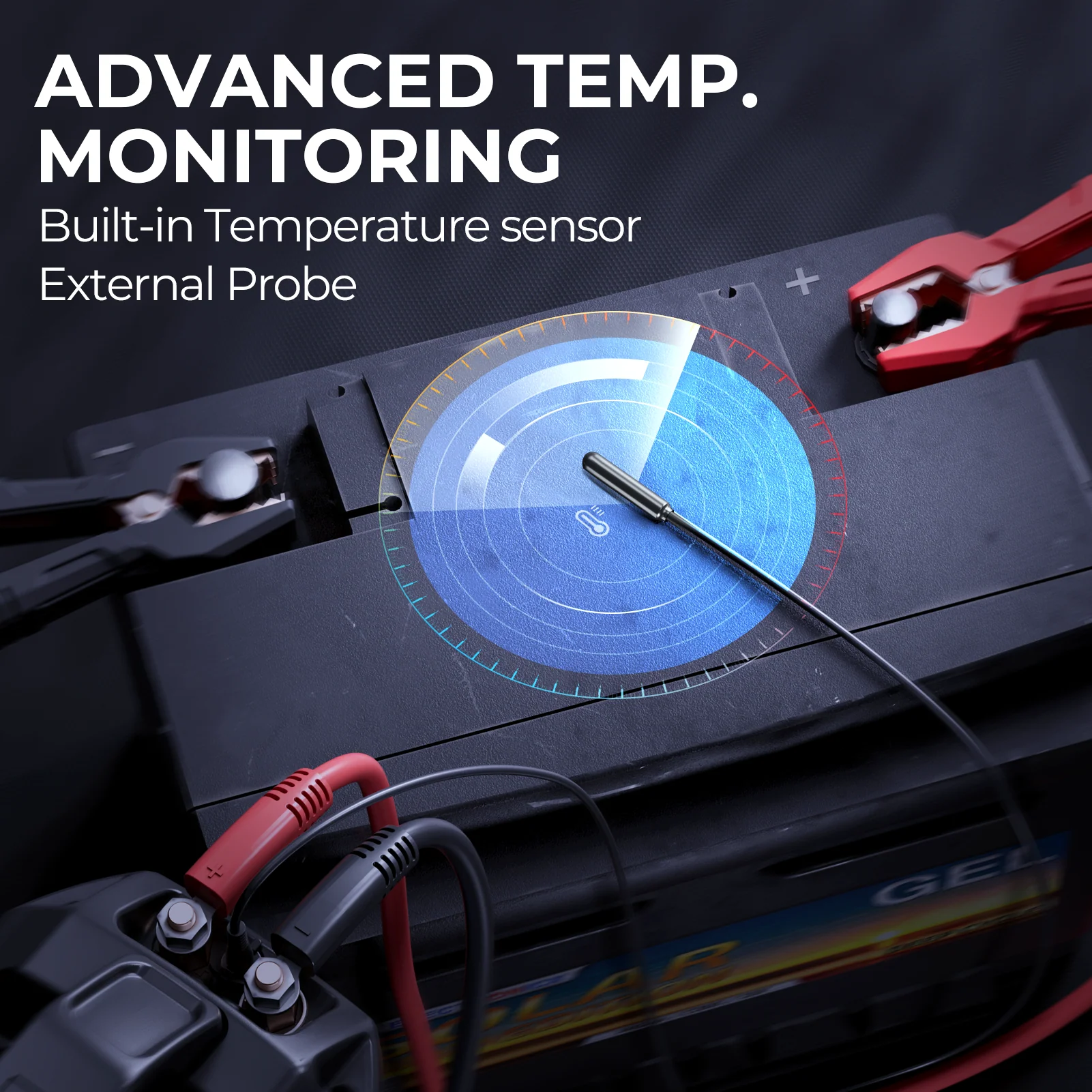

DUAL TEMPERATURE MONITORING FOR SAFETY IN EVERY ELEMENT
The Tornado90000 features a built-in temperature sensor constantly protecting the device being charged. It has a built-in temperature sensor to detect the temperature of the device at all times; External temperature sensing probe to monitor and protect the device being charged.
TECHNICAL SPECIFICATIONS
Input Voltage: 100-130V or 200-240V
Adjustable Voltage: 11-15.8V 22-31.6V

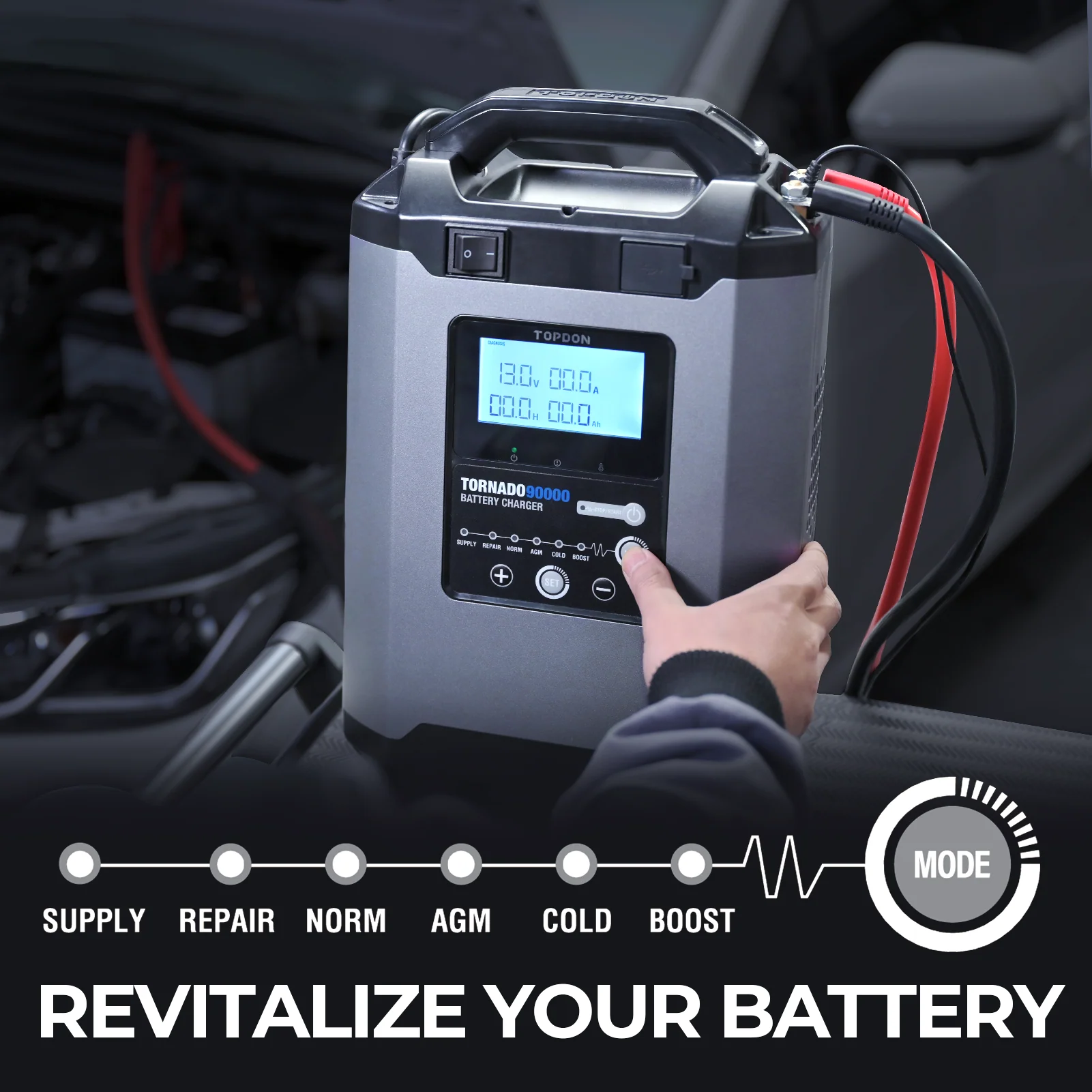

Charging Mode: 12V/24V Mode: SUPPLY/NORM/COLD/BOOST/REP/AGM
Applicable Batteries: 20-2800Ah
AC Cable Length: 1.8m, Input AWG18#
Clamp Length: Positive AWG4#, 2.2m; Negative AWG4#, 2.2m
Protection Rating: IP20 Fan cooled
PACKING LIST
Tornado90000
User Manual
Battery Clamp
Allen Wrench
WARRANTY
3 Year Warranty
